7 Wires CR7-06 12VDC 24VDC 24VAC Stainless Steel Normally Closed Position Feedback Manual Override Motorized Electrical Ball Valve (1-1/4 inch)

Actuator Design is Capacitor Return, Will Require Connect Power Time No Less Than 2min For Charge inner Capacitor Each Cycle Time; Technical Parameter:◎Model:T32-S2-B;◎Wide Range Working Voltage: 12VDC 24VAC 24VDC;◎Valve Dimension:1-1/4" NPT Female Thread Connection;◎Wiring Diagram:CR7-06(3 Wires Control, Installed With Position Feedback Wires);◎Valve Body Material: Stainless Steel 304(CF8);◎Actuator Material: Engineering Plastics;◎Open/Closed Time: Less Than 15Sec.; ◎Suitable Media: Air, Water, Oil; ◎Power: Max 2 Watts;◎Manual Override: Yes; ◎Indicator: Yes; ◎Working Current: Max 1.5 Ampa When Action, Cut Off Current When Arrived At Place; ◎Max. Torque Force For Aucator: 15 N.M; ◎Cables Length: 0.5 Meters;◎Max Working Pressure:145PSI(1.0MPA); ◎Liquid Temperature: 32°~212°F (0°~100°C);◎Environment Temperature:5~122F(-15°~50°C);Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Small Industrial Equipment For Automatic Control;◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;◎Automatic Control Systems;◎Efficient Water-Saving, Water Equipment;◎Solar Hot Water Project;◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.Features: ◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;◎The Conditions That Solenoid Valve Can Not Be Worked;◎High Protection Class, Can Be Worked In Most Conditions;◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear.

• 2 Way NPT 1-1/4" 32mm Full Bore CF8 Lead Free Valve Body;
• Limit Switches Bulid, Cut Off Power Automatically When Arrived At Place;
• Build In Capacitor Return, Will Return To Original Position When Power Off;
• Require Connect Power Time No Less Than 2min For Charge Inner Capacitor Each Cycle Time;

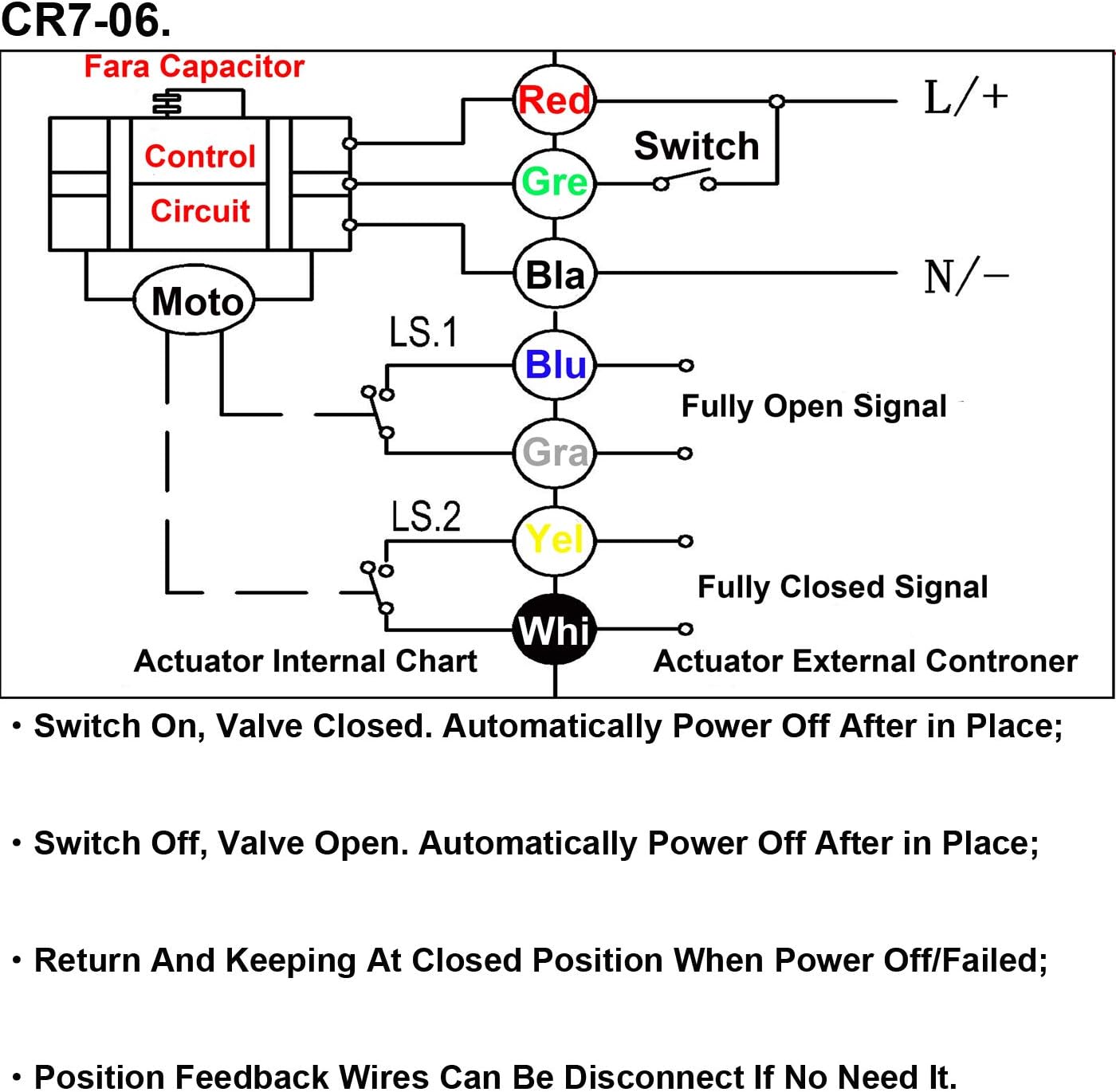

• Form 12V-24VDC include 24VAC Wide Range Working Volage Design, CR7-06 3 Wires Control and Position Feedback Wires Installed Electric Ball Valve, On/Off By Manually/Electrical Available, Auto Return To Closed When Power Off/Power Failed.
